中心鎖/碟煞
前轆 : 12X100
後轆 : 12X142
Shimano-M11

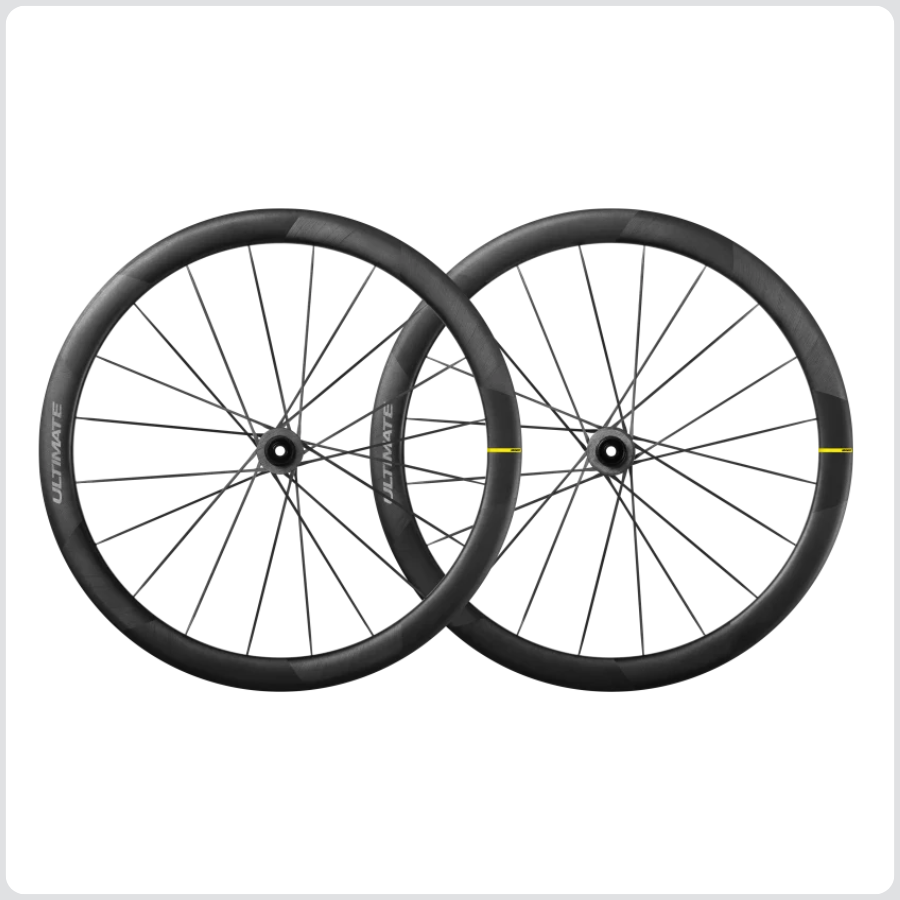

At just 1255g, Cosmic Ultimate UST Disc is the ultimate balance of lightweight, stiffness and aerodynamics: the pinnacle of tubeless carbon wheels
Specifications
Delivered with
- User guide
- UST valve not mounted on wheel
- Wheel cover
Hubs
- Freewheel technology: Instant Drive 360
- Bearing technology: QRM automatic setting - sealed cartridge
- Axle size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (not included)
- Axle material: aluminum
- Body material: carbon and aluminium
- Freewheel: Shimano HG road
- Disc standard: Center Lock? only
Compatibility
- Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately) and by changing the axle (V2373401 also sold separately)
- Freewheel body: convertible SHIMANO HG light road (kit V3850101 sold separately)
- Freewheel body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
- Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
- Freewheel body: convertible SHIMANO MS (kit V3990101 sold separately)
- Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
- Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
- Freewheel body: convertible SRAM XD road (kit V2580101 sold separately)
Rims
- Tire: UST Tubeless Ready
- Height: 45 mm
- Braking: disc
- Internal width: 19 mm
- Drilling: co-molded Fore drilled inserts (front/rear 20 holes)
- ETRTO size: 622x19TC
- Material: 100% carbon fiber with UD external layer
Delivered with
- User guide
- UST valve not mounted on wheel
- Wheel cover
Spokes
- Material: unidirectional carbon fiber
- Lacing: crossed 2 (front and rear)?
- Shape: straight, extra-flat (front and rear)
Intended use
- ASTM category 1 : road only
- Maximum weight supported by the wheels: must not exceed 120 kg (bike weight included)
- Maximum tyre size: width 62mm - pressure max. 3.8Bar/55PSI
- Minimum tyre size: width 23mm - pressure max. 6.75Bar/97PSI
