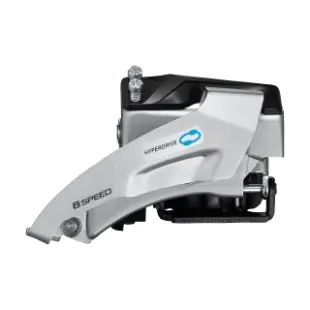

| Series |
ALTUS
|
||
|---|---|---|---|
| Model no. | |||
| Color | 1 |
Series color
|
|
| 2 |
-
|
||
| Front speeds |
2
|
||
| Rear speeds |
8/7
|
||
| Compatible chain |
HG 8/7/6-speed
|
||
| Action | TOP SWING |
✔
|
|
| Down swing |
-
|
||
| SIDE SWING |
-
|
||
| Mount | Clamp band (mm) | 28.6 |
✔ (w/ S size adapter)
|
| 31.8 |
✔ (w/ M size adapter)
|
||
| 34.9 |
✔
|
||
| E-type | With bottom bracket plate |
-
|
|
| Without bottom bracket plate |
-
|
||
| Direct mount |
-
|
||
| Brazed-on |
-
|
||
| Cable adjust |
-
|
||
| Cable route type | Dual-pull |
✔
|
|
| Top-pull exclusive |
-
|
||
| Down-pull exclusive |
-
|
||
| Front-pull |
-
|
||
| Chain line (mm) |
48.8/51.8 *
|
||
| Chainstay angle (deg.) |
64-69
|
||
| Top gear teeth |
36T
|
||
| Total capacity |
14T
|
||
| Applicable top-mid tooth difference |
-
|
||
| Multi access cable fixing screw |
-
|
||
| Angled stroke adjust screw |
✔
|
||
| Angled clamp band design |
✔
|
||
| Multi-bearing construction |
-
|
||
| Link bushings |
-
|
||
| Front clamp band | Material |
Steel
|
|
| Finish |
Painted
|
||
| Rear clamp band, base bracket | Material |
Steel
|
|
| Finish |
Painted
|
||
| Clamp screw | Material |
Steel
|
|
| Finish |
Nickel plated
|
||
| Bottom bracket plate | Material |
-
|
|
| Finish |
-
|
||
| Outer link | Material |
Steel
|
|
| Finish |
Painted
|
||
| Inner link | Material |
Zinc plated
|
|
| Finish |
Painted
|
||
| Chain guide | Material |
Steel
|
|
| Finish |
Chrome plated
|
||
| Cable fixing screw | Material |
Steel
|
|
| Finish |
Nickel plated
|
||
| Stroke adjusting screw | Material |
Steel
|
|
| Finish |
Zinc plated
|
||
| Average weight (g) (band type: L size, direct type w/ screw) |
-
|
||
| Note |
* Boost spec.
|
||
