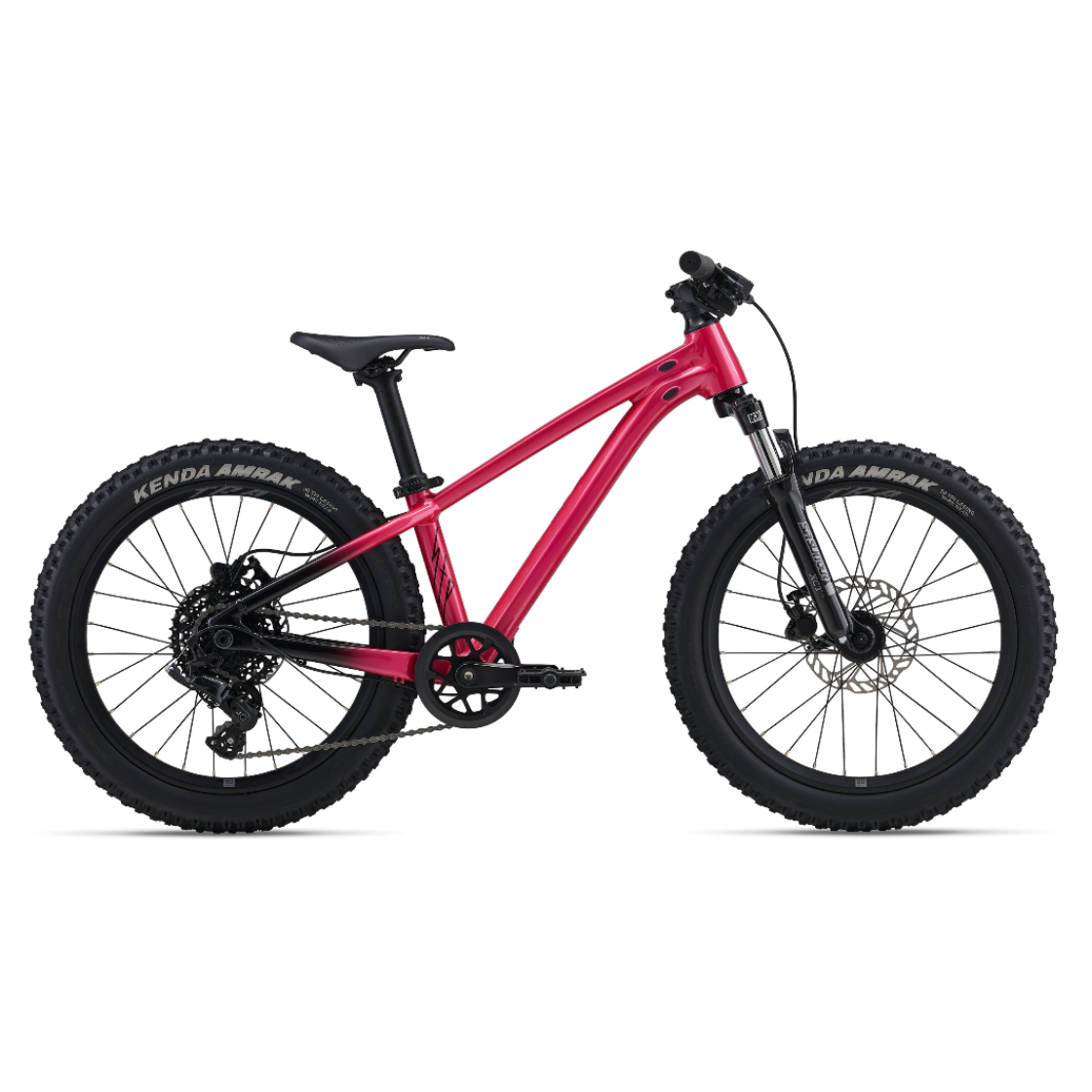

Liv 2027 STP 20 FS Kids Mountain Bike | Youth-Specific Performance & Fun
Designed for riders 110–130 cm tall, the Liv 2027 STP 20 FS features youth-specific components to inspire confidence on any terrain. Built around a lightweight ALUXX-grade aluminum frame with a 12x142mm thru-axle, it pairs an SR XCT 63mm travel suspension fork with a crisp MicroShift Acolyte 1x8 drivetrain and youth-tuned hydraulic disc brakes. From short 105mm cranks to a low bottom bracket height, every detail is tailored for optimal fit and control.
💡 Product Key Highlights:
- Youth-Specific Components: Designed with 105mm short cranks, a Liv Grit Core Lite saddle, and smaller-diameter handlebars for a custom fit.

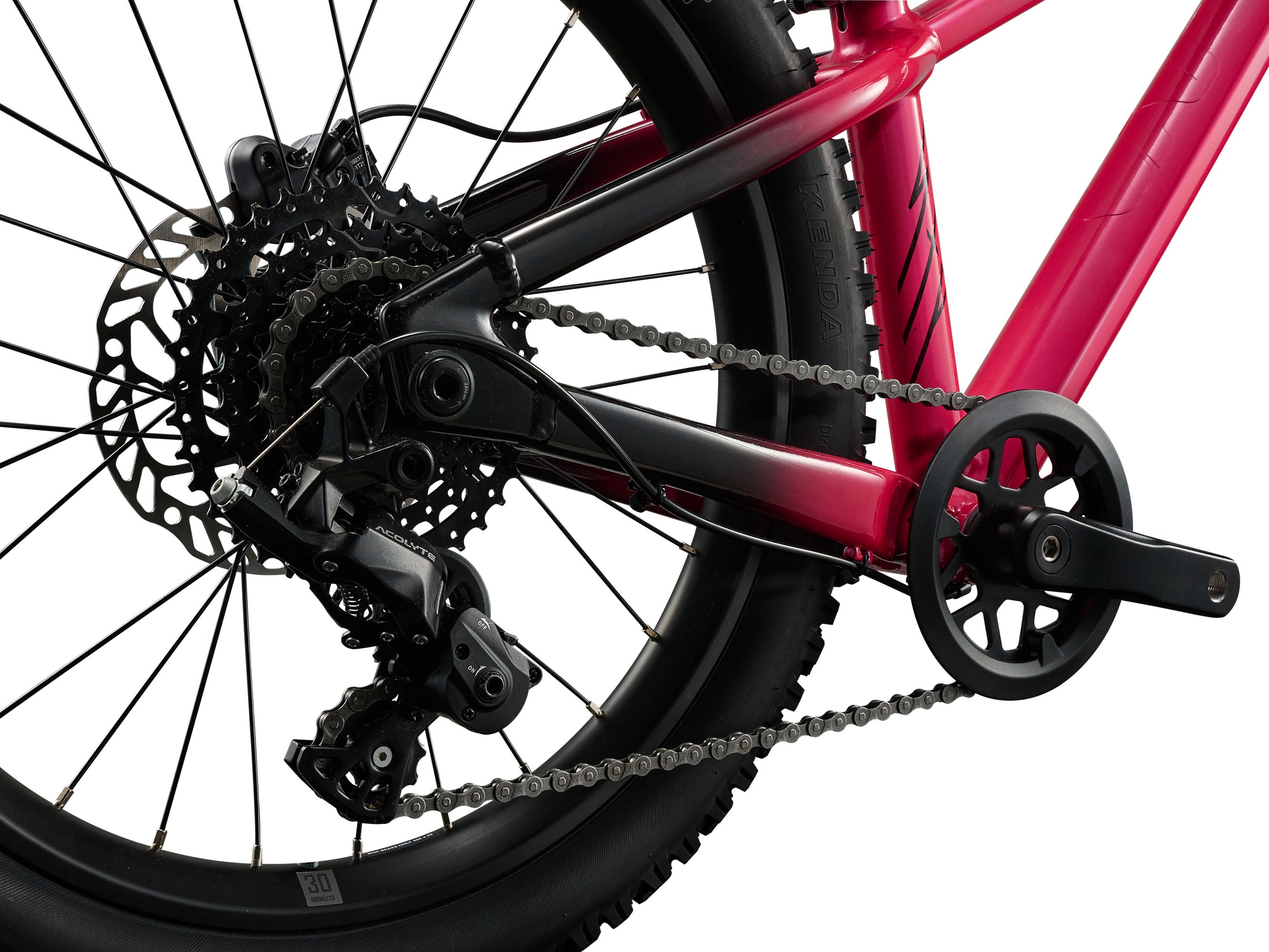

- MicroShift Acolyte 1x8 Drivetrain: Features a super-short cage rear derailleur with a spring lock for increased ground clearance and reliable shifting.
- Youth-Tuned Hydraulic Disc Brakes: Tektro HD-J2820 brakes deliver smooth, predictable, and powerful stopping performance tailored for small hands.
- TRA 2 Wide Rims & Kenda Tires: 20x2.2" high-volume tires combined with Wideguard technology provide exceptional traction and cushioned control.
Specifications
* Note: All specifications listed are for reference only and subject to change without notice.
| Specification Item | Details |
|---|---|
| Frame | ALUXX-Grade Aluminum, 12x142mm thru-axle |

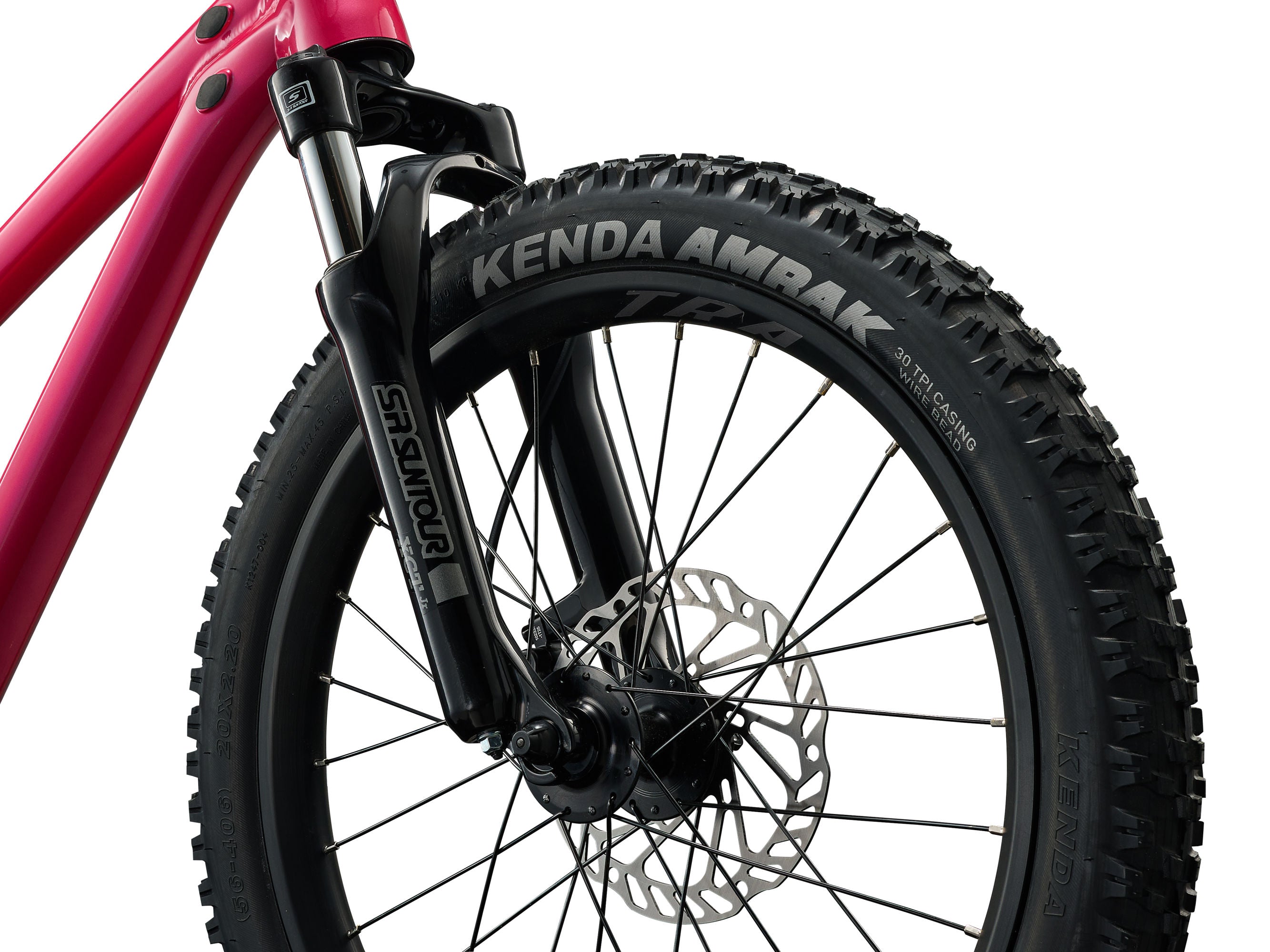

| Fork | SR XCT JR L20 coil spring, 63mm travel, 9x100mm QR |
| Handlebar / Grip | Giant Sport Alloy, Low / Giant Junior Grips |
| Stem | Forged Alloy, 0-Degree |
| Seatpost / Saddle | Alloy rigid 2-bolt, 30.9mm x 260mm / Liv Grit Core Lite Saddle |
| Shifters | MicroShift Acolyte 1x8, SL-M6280-R (small hand ergonomics with index thumb operation & indicator) |
| Rear Derailleur | MicroShift Acolyte 1x8, RD-M5185S (super short cage with spring lock) |
| Brakes & Levers | Tektro HD-J2820 Hydraulic Disc & Levers |
| Cassette / Chain | CS-H083 11-38T, 8-speed / KMC Z8.1 Chain |
| Crankset | ProWheel Forged Alloy 30T narrow-wide steel chainring w/CG, 105mm crank arms |
| Rims / Hubs | TRA 2, 20" with Wideguard technology / Giant Tracker Hubs (Front: M50-F 28h QR, Rear: M9201-R 28h TA, 6-bolt, HG) |
| Tires | Kenda Amrak, 20x2.2" |
📏 Rider Height & Size Recommendation Guide
To ensure optimal safety, stability, and pedaling efficiency, please refer to the official sizing guide below:
| Series | Wheel Size | Recommended Height |
|---|---|---|
| Liv 2027 STP 20 FS | 20 Inches | 110 cm – 130 cm |
- Note: All specifications and sizing recommendations are for reference only and subject to change without notice.
