Technical Information - Rim:
Dimensions (ETRTO): 15-622
Inner Width: 15 mm
Outer Width: 19 mm
Depth: 30.5 mm
Valve Hole Diameter: Presta (6.5 mm)
Rim Material: aluminium (Maxtal)

Technical Information - Front Hub:
Over Locknut Dimension: 9 x 100 mm threaded axle
Bearings: cartridge bearings (sealed)
Body Material: aluminium

Technical Information - Rear Hub:
Over Locknut Dimension: 10 x 120 mm threaded axle
Bearings: cartridge bearings (sealed)
Body Material: aluminium

Technical Information - Lacing:
Front Lacing Pattern: radial
Rear Lacing Pattern: 2-cross
Spoke Type: straight / aero
Spoke Length: 279 mm (front) / 296 mm (rear)
Spoke Material: steel
Spoke Type: self-locking
Nipple Material: brass

Approved For:
Weight Limit: 120 kg total weight* (rider, gear & bike)
Air Pressure (max.): 8.7 bar
Recommended Tyre Width: 21 mm ? 28 mm

* recommended for increased durability

Factory Number:
F3250110 + R5670110

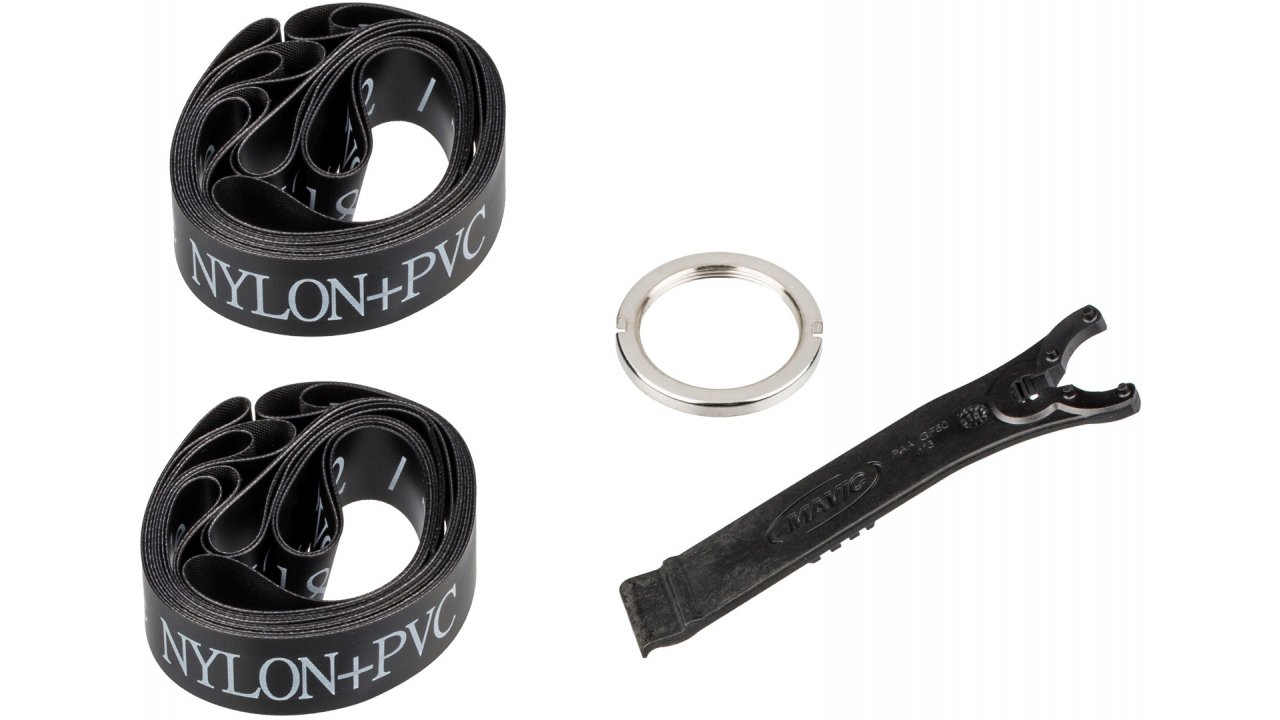

Contents:
- 1 x Mavic Ellipse wheelset (front and rear)
- 2 x rolls of Mavic rim tape
- 1 x bearing adjustment tool
- 1 x sprocket lockring
- 4 x axle nuts
