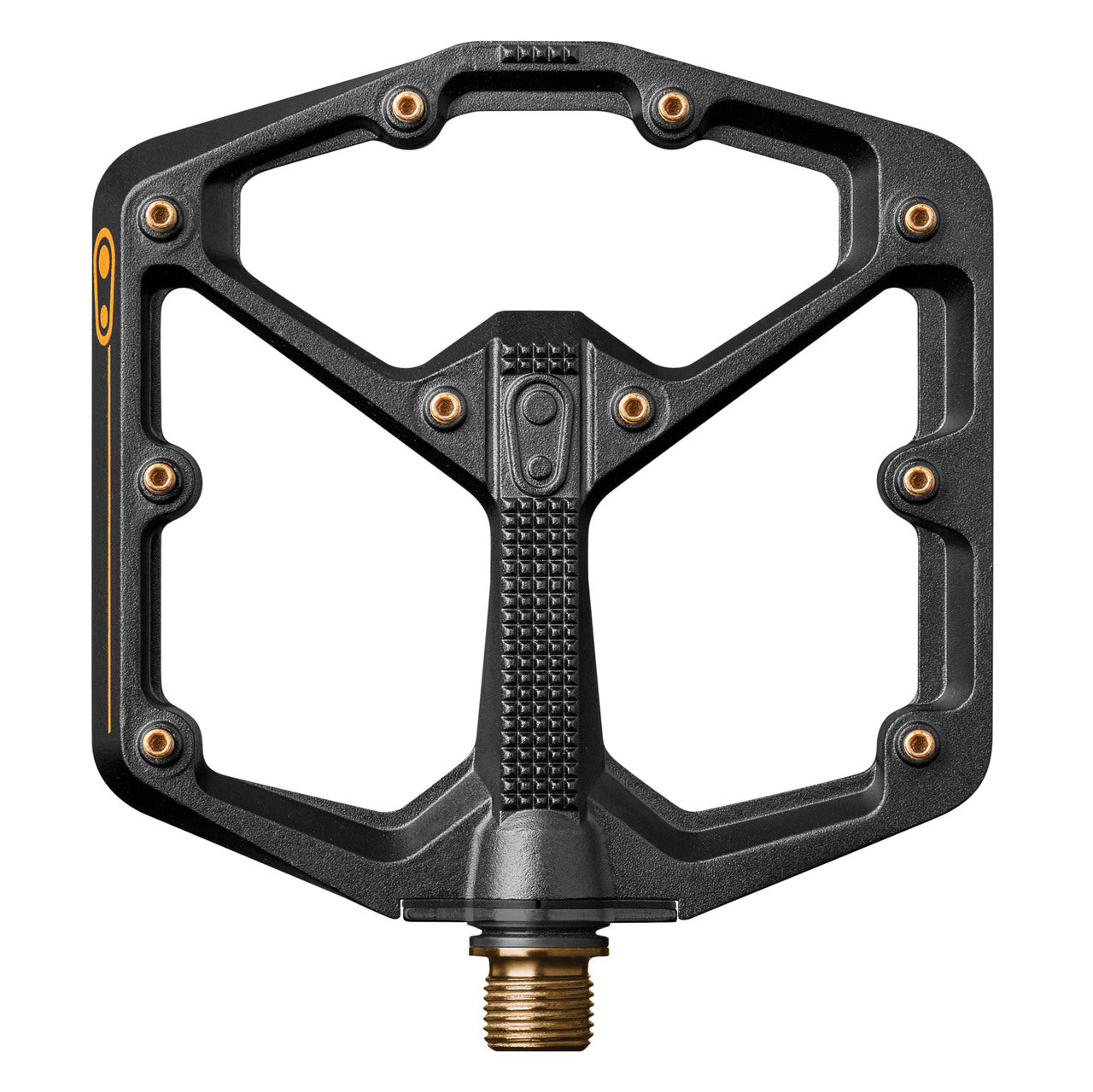

Stamp 11 Large Titanium Flat Pedals
Size-specific Platform
Available in Small or Large for optimal shoe/pedal interface
Match System
Designed for an optimized interface with our Stamp shoes
Voted #1
Winner of Vital MTB's 2025 Audience Survey - #1 Flat Pedals To Buy
Features
- Titanium spindle for weight reduction
- Optimal surface area
- Minimal profile 11mm-13mm thin
- Concave platform for secure foothold
- 10 adjustable pins per side for grip
- Premium bearings & seal system
- Stamp large recommended for shoe sizes: 10-15 (us) // 43-49 (eu)
- Stamp small recommended for shoe sizes: 5-10 (us) // 37-43 (eu)
| Specification | Stamp 11 Small | Stamp 11 Large |
| SKU | 16166 | 16165 |
| Body Material | Forged 6061-T6 Aluminum | Forged 6061-T6 Aluminum |
| Footprint | 100mm x 100mm | 114mm x 111mm |
| Shoe Size | US 5–10 (M) // EU 37–43 | US 10–15 // EU 43–49 |
| Traction Pins | 10 adjustable per side | 10 adjustable per side |
| Pin Length | 8mm inner, 10mm outer | 8mm inner, 10mm outer |
| Inner Bearing Type | Igus LL-glide bearing | Igus LL-glide bearing |
| Outer Bearing Type | Igus LL-glide bearing | Igus LL-glide bearing |
| Spindle Material | 6Al/4V Titanium | 6Al/4V Titanium |
| Max Rider Weight | 200 lbs / 90 kgs | 200 lbs / 90 kgs |
| Weight | 299g per pair | 325g per pair |
| Warranty | 5 years | 5 years |
