| Series | SHIMANO | ||
|---|---|---|---|
| Model no. | FH-TC500-HM-B | ||
| Color | 1 Hub shell | Black | |
| 1 Quick release | - | ||
| 2 Hub shell | - | ||
| 2 Quick release | - | ||
| Brake type | CENTER LOCK disc brake | ||
| Rear speeds | 11/10/9/8/7 | ||
| O.L.D. (mm) | 148 | ||
| Spoke hole | 24H | - | |
| 28H | ✔ | ||
| 32H | ✔ | ||
| 36H | ✔ | ||
| 10 tooth cog compatible | - | ||
| External serration disc brake rotor lock ring | With | - | |
| Without | ✔ | ||
| Internal serration disc brake rotor lock ring | With | - | |
| Without | ✔ | ||
| CENTER LOCK mount cover option | - | ||
| Axle fixing method | 12 mm E-THRU | ||
| Quick release skewer length (mm) | 166 | - | |
| 168 | - | ||
| 170 | - | ||
| 172 | - | ||
| 173 | - | ||
| 174 | - | ||
| 176 | - | ||
| 178 | - | ||
| Thru axle (length x inner diameter ; mm) | 135 x 10 | - | |
| 135 x 12 | - | ||
| 142 x 12 | - | ||
| 148 x 12 | ✔ | ||
| 150 x 12 | - | ||
| 157 x 12 | - | ||
| Flange distance (mm) | 61.45 | ||
| Offset (mm) | 7.6 | ||
| P.C.D. left / right (mm) | 50.5/51.5 | ||
| Flange diameter left / right (mm) | 59.3/60.3 | ||
| Spline type | MICRO SPLINE | - | |
| HG spline L2 (ROAD 12-speed dedicated) | - | ||
| HG spline L (ROAD 12/11-speed) | - | ||
| HG spline M (10/9/8-speed, MTB 11-speed, 7-speed CS-HG400/HG210) | ✔ | ||
| HG spline S (7-speed) | - | ||
| Engagement type | Pawl ratchet | ||
| Quick engagement | - | ||
| Seal | Hub | Labyrinth+Contact | |
| FREEHUB body | Contact | ||
| Internal grease sleeve | - | ||
| Digital adjustment system | - | ||
| Bearing | Stainless ball | - | |
| Cup | - | ||
| Cone | - | ||
| Cartridge | ✔ | ||
| FREEHUB body | Material | Steel | |
| Finish | - | ||
| Hub shell | Material | Aluminum | |
| Finish | Anodized | ||
| Axle | Material | Steel | |
| Finish | - | ||
| Quick release lever | Material | - | |
| Finish | - | ||
| Color | - | ||
| Quick release housing | Material | - | |
| Finish | - | ||
| Quick release nut | Material | - | |
| Finish | - | ||
| Disc brake rotor lock ring | Material | - | |
| Finish | - | ||
Skip to product information
Description
| Series | SHIMANO | ||
|---|---|---|---|
| Model no. | FH-TC500-HM-B | ||
| Color | 1 Hub shell | Black | |
| 1 Quick release | - | ||
| 2 Hub shell | - | ||
| 2 Quick release | - | ||
| Brake type | CENTER LOCK disc brake | ||
| Rear speeds | 11/10/9/8/7 | ||
| O.L.D. (mm) | 148 | ||
| Spoke hole | 24H | - | |
| 28H | ✔ | ||
| 32H | ✔ | ||
| 36H | ✔ | ||
| 10 tooth cog compatible | - | ||
| External serration disc brake rotor lock ring | With | - | |
| Without | ✔ | ||
| Internal serration disc brake rotor lock ring | With | - | |
| Without | ✔ | ||
| CENTER LOCK mount cover option | - | ||
| Axle fixing method | 12 mm E-THRU | ||
| Quick release skewer length (mm) | 166 | - | |
| 168 | - | ||
| 170 | - | ||
| 172 | - | ||
| 173 | - | ||
| 174 | - | ||
| 176 | - | ||
| 178 | - | ||
| Thru axle (length x inner diameter ; mm) | 135 x 10 | - | |
| 135 x 12 | - | ||
| 142 x 12 | - | ||
| 148 x 12 | ✔ | ||
| 150 x 12 | - | ||
| 157 x 12 | - | ||
| Flange distance (mm) | 61.45 | ||
| Offset (mm) | 7.6 | ||
| P.C.D. left / right (mm) | 50.5/51.5 | ||
| Flange diameter left / right (mm) | 59.3/60.3 | ||
| Spline type | MICRO SPLINE | - | |
| HG spline L2 (ROAD 12-speed dedicated) | - | ||
| HG spline L (ROAD 12/11-speed) | - | ||
| HG spline M (10/9/8-speed, MTB 11-speed, 7-speed CS-HG400/HG210) | ✔ | ||
| HG spline S (7-speed) | - | ||
| Engagement type | Pawl ratchet | ||
| Quick engagement | - | ||
| Seal | Hub | Labyrinth+Contact | |
| FREEHUB body | Contact | ||
| Internal grease sleeve | - | ||
| Digital adjustment system | - | ||
| Bearing | Stainless ball | - | |
| Cup | - | ||
| Cone | - | ||
| Cartridge | ✔ | ||
| FREEHUB body | Material | Steel | |
| Finish | - | ||
| Hub shell | Material | Aluminum | |
| Finish | Anodized | ||
| Axle | Material | Steel | |
| Finish | - | ||
| Quick release lever | Material | - | |
| Finish | - | ||
| Color | - | ||
| Quick release housing | Material | - | |
| Finish | - | ||
| Quick release nut | Material | - | |
| Finish | - | ||
| Disc brake rotor lock ring | Material | - | |
| Finish | - | ||

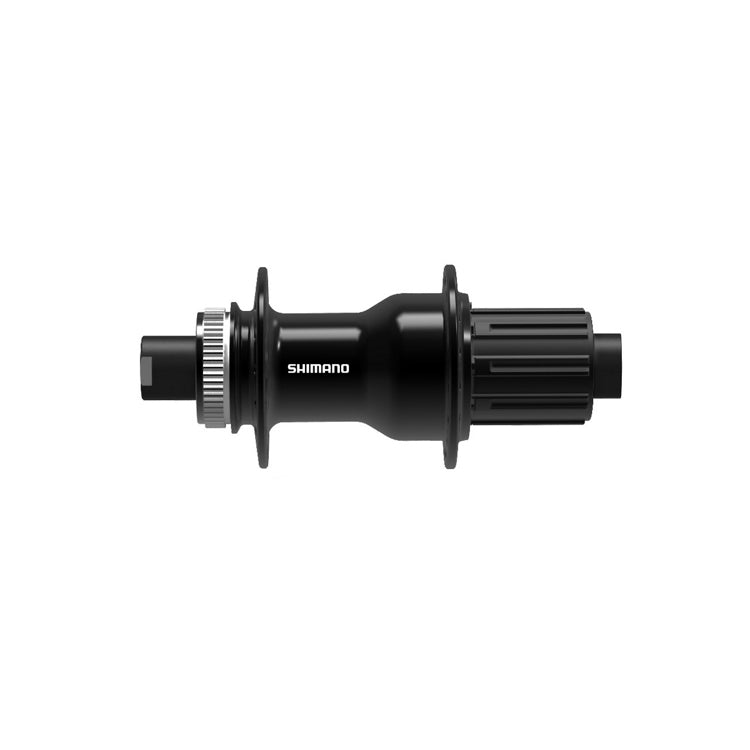

Shimano 中心鎖後碟哈-12X148mm-32孔-FH-TC500-HM-B
Regular price
$250.00
