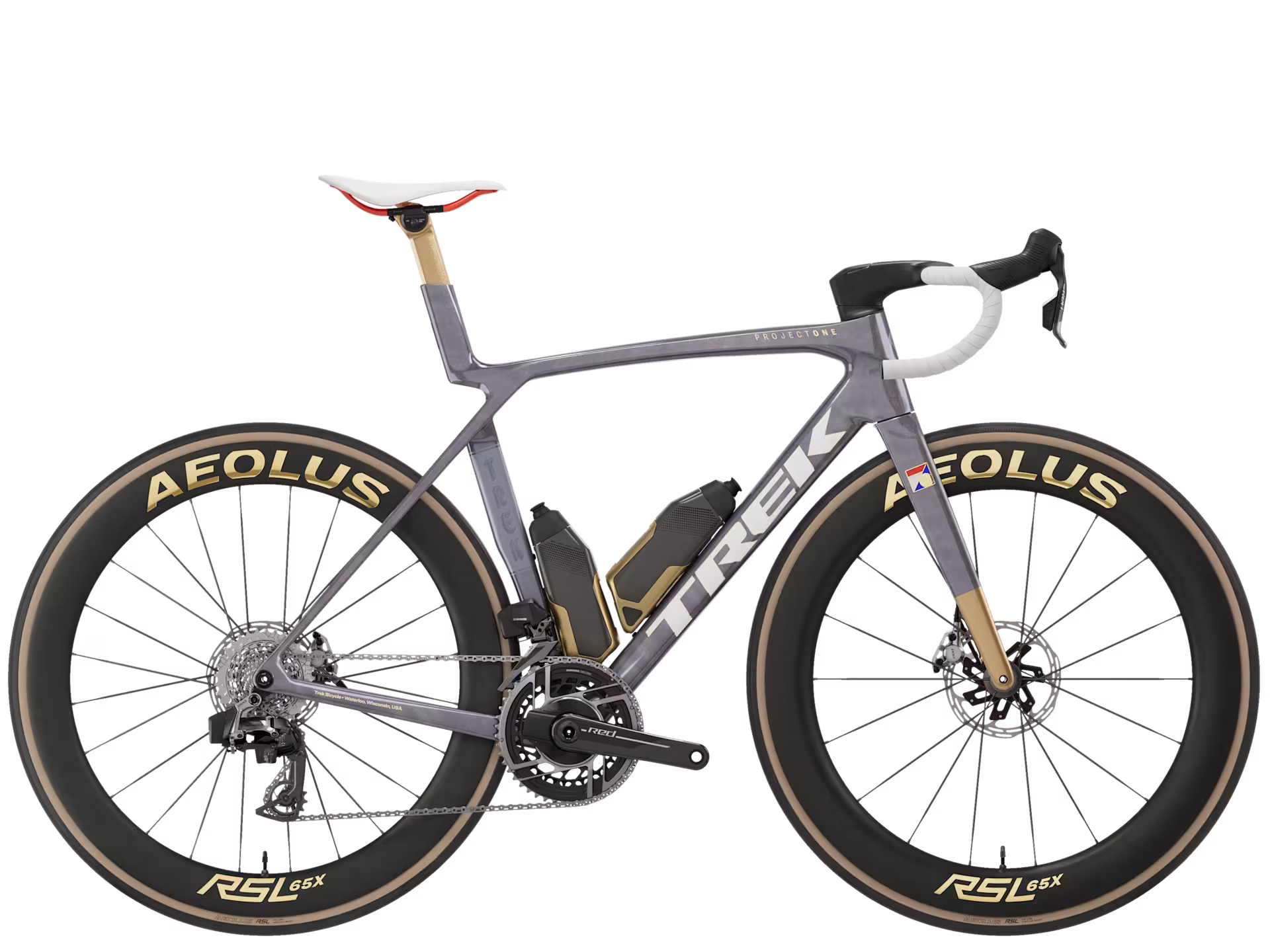

Trek Madone SLR 9 AXS Gen 8 Project One ICON No. 76 創始紀念版公路車
Trek Madone SLR 9 AXS Gen 8 Project One ICON No. 76 創始紀念版公路車
Trek Madone SLR 9 AXS Gen 8 Project One ICON No. 76 創始紀念版公路車
Trek Madone SLR 9 AXS Gen 8 Project One ICON No. 76 創始紀念版公路車
Trek Madone SLR 9 AXS Gen 8 Project One ICON No. 76 創始紀念版公路車
Description

Frame with Fork
900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork
Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle

Weight
ML - 6.90 kg / 15.22 lbs (with tubes, no bottles/cages)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery
SRAM AXS battery pack (with charger)

Shifter
SRAM RED AXS E1
Front derailleur
SRAM RED AXS E1, braze-on
Rear derailleur
SRAM RED AXS E1, 36T max cog
*Crank
Size: XS, S
SRAM RED AXS E1, power meter, 48/35, DUB, 160 mm length
Size: M, ML
SRAM RED AXS E1, power meter, 48/35, DUB, 165 mm length
Size: L, XL
SRAM RED AXS E1, power meter, 48/35, DUB, 170 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM RED XG-1290 E1, 10-33, 12-speed
Chain
thSRAM RED E1
Max. chainring size
1x: 54T, 2x: 56/43

Wheel front
The Bontrager Aeolus RSL 65X, OCLV Carbon, Tubeless Ready, 100x12 mm thru-axle, 50th anniversary edition
Wheel rear
Bontrager Aeolus RSL 65X, OCLV Carbon, Tubeless Ready, SRAM XDR freehub, 142x12 mm thru-axle, 50th anniversary edition
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tyre
Pirelli P Zero Race TLR RS, 120 tpi, tubeless-compatible, 700x28 mm
Max tyre size
32mm (as measured, see manual for details)

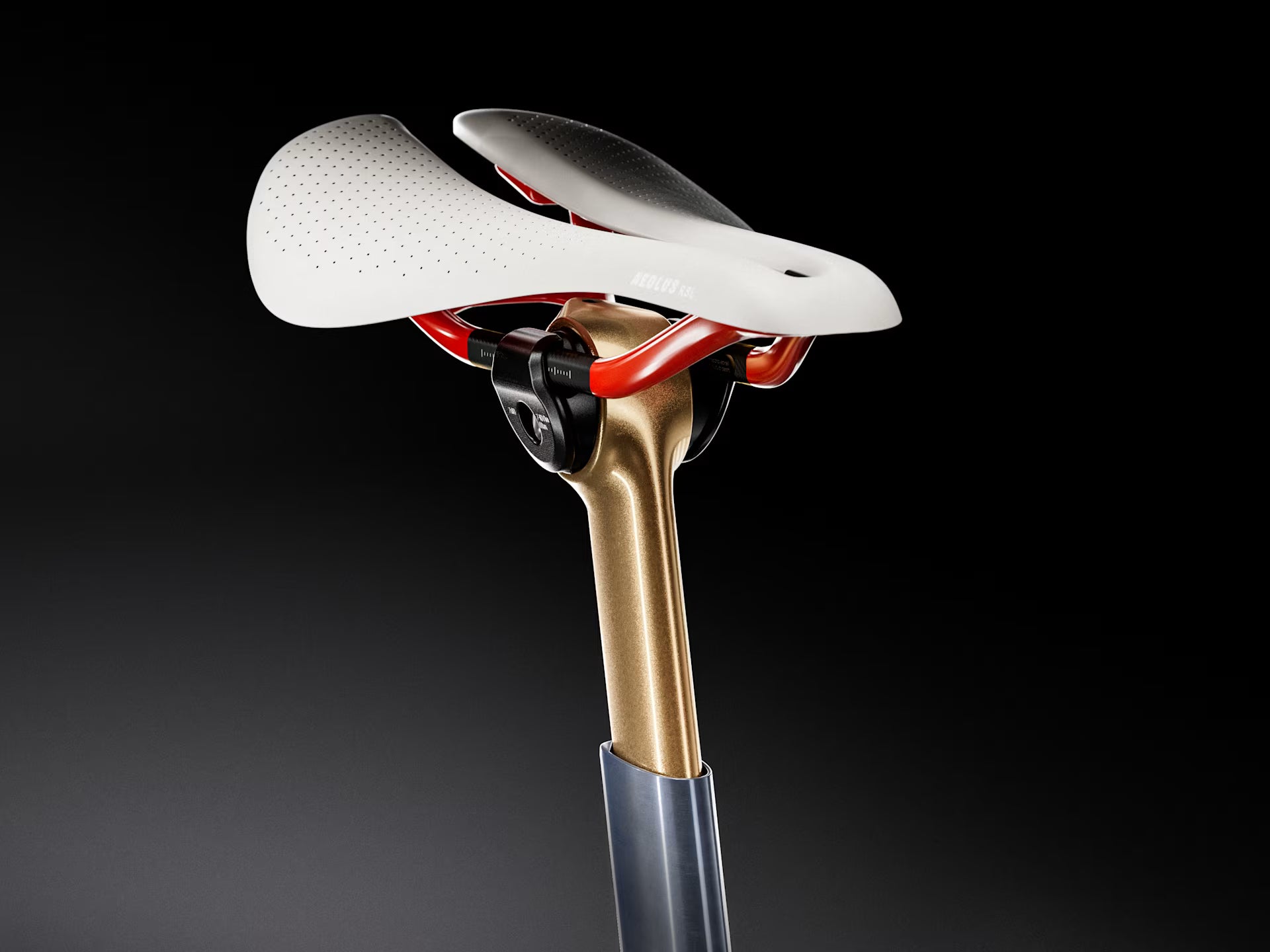

Saddle
Aeolus RSL, carbon rails, 145 mm width, 50th anniversary edition
Seatpost
Madone aero carbon seat post, 0 mm offset, short length
*Handlebar/stem (integrated)
Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Handlebar tape
Trek EcoTack, 50th anniversary edition
Brake rotor
SRAM Paceline X, rounded, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 180 mm front, 160 mm rear


 Reminder
網站顯示為倉存數量，如客人到門店購買，請致電門市查詢現貨情況：2668 6293（Giant門市）/2668 1183（DAHON門市），多謝支持🙏

For store availability, please call our shops directly: Giant Store: 2668 6293 DAHON Store: 2668 1183 Thank you for your support! 🙏

Trek Madone SLR 9 AXS Gen 8 Project One ICON No. 76 創始紀念版公路車

5352497

Regular price $133,800.00
Sold out,Book via WhatsApp: 5100 8266

Shipping calculated at checkout

  • ICON No. 76
  • XS
  • S
  • M
  • ML
  • L
  • XL

Frame with Fork
900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork
Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle

Weight
ML - 6.90 kg / 15.22 lbs (with tubes, no bottles/cages)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery
SRAM AXS battery pack (with charger)

Shifter
SRAM RED AXS E1
Front derailleur
SRAM RED AXS E1, braze-on
Rear derailleur
SRAM RED AXS E1, 36T max cog
*Crank
Size: XS, S
SRAM RED AXS E1, power meter, 48/35, DUB, 160 mm length
Size: M, ML
SRAM RED AXS E1, power meter, 48/35, DUB, 165 mm length
Size: L, XL
SRAM RED AXS E1, power meter, 48/35, DUB, 170 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM RED XG-1290 E1, 10-33, 12-speed
Chain
thSRAM RED E1
Max. chainring size
1x: 54T, 2x: 56/43

Wheel front
The Bontrager Aeolus RSL 65X, OCLV Carbon, Tubeless Ready, 100x12 mm thru-axle, 50th anniversary edition
Wheel rear
Bontrager Aeolus RSL 65X, OCLV Carbon, Tubeless Ready, SRAM XDR freehub, 142x12 mm thru-axle, 50th anniversary edition
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tyre
Pirelli P Zero Race TLR RS, 120 tpi, tubeless-compatible, 700x28 mm
Max tyre size
32mm (as measured, see manual for details)

Saddle
Aeolus RSL, carbon rails, 145 mm width, 50th anniversary edition
Seatpost
Madone aero carbon seat post, 0 mm offset, short length
*Handlebar/stem (integrated)
Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Handlebar tape
Trek EcoTack, 50th anniversary edition
Brake rotor
SRAM Paceline X, rounded, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 180 mm front, 160 mm rear


網站顯示為倉存數量，如客人到門店購買，請致電門市查詢現貨情況：2668 6293（Giant門市）/2668 1183（DAHON門市），多謝支持🙏
Trek Madone SLR 9 AXS Gen 8 Project One ICON No. 76 創始紀念版公路車
Regular price $133,800.00
Sold out,Book via WhatsApp: 5100 8266
