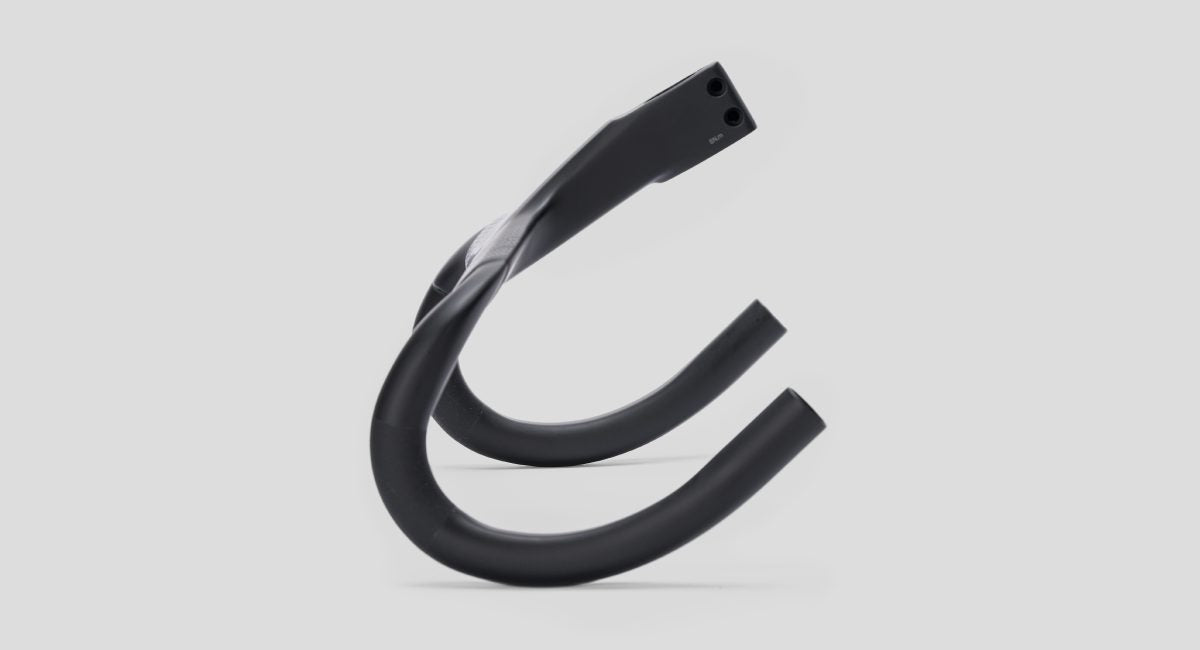

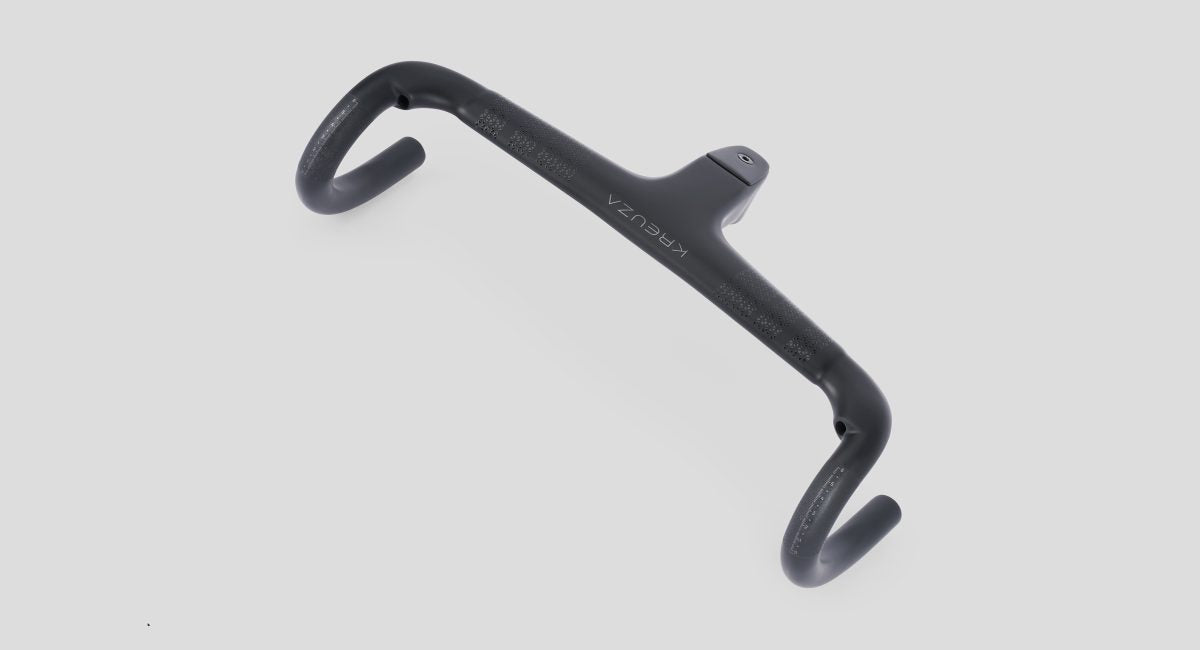

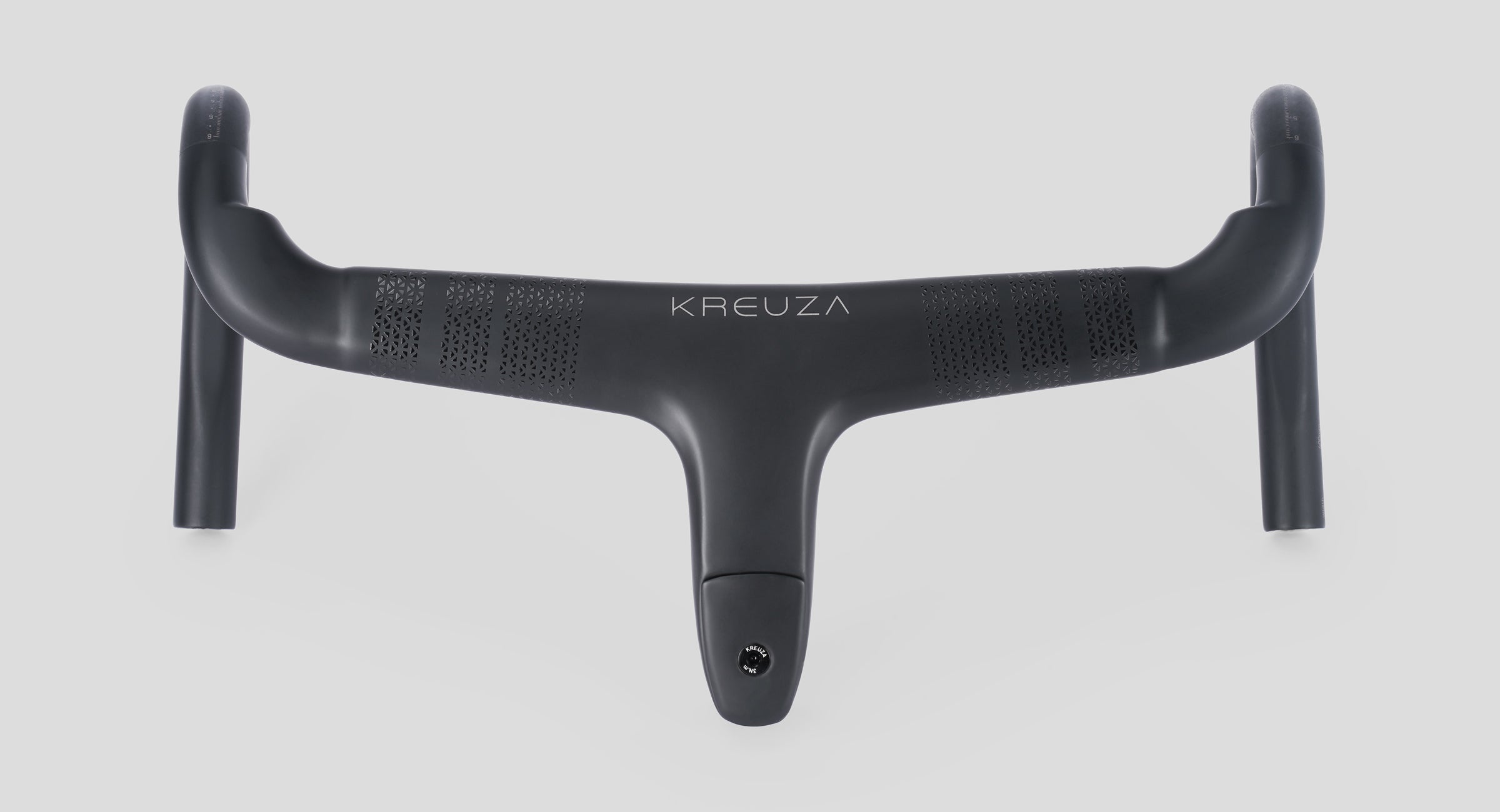

The KREUZA one-piece handlebar is made of T800 carbon fiber. The 290 cm version is paired with a 305 mm one-piece stem and weighs only 38 grams (110 grams after painting).

Available in 18 sizes, widths range from 360mm to 400mm, and stem lengths from 90mm to 140mm.

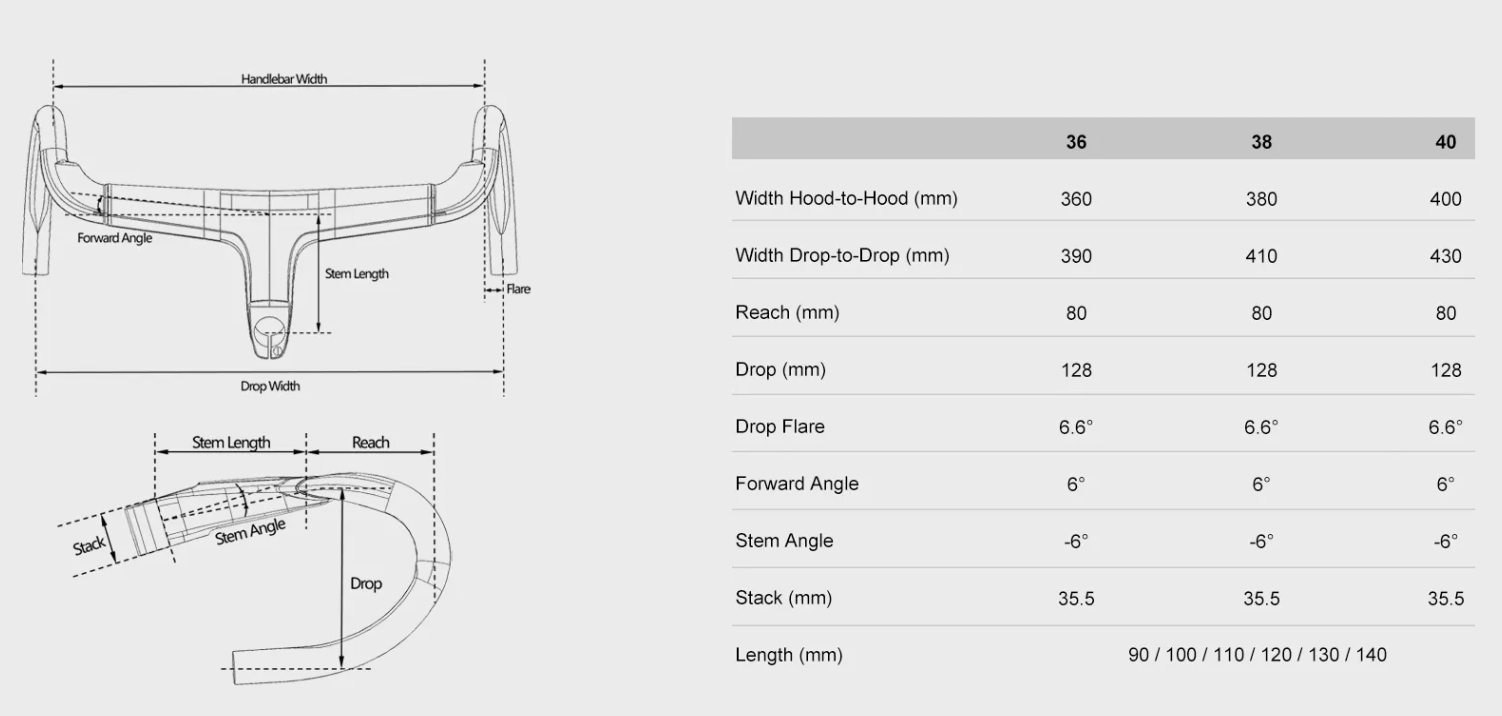

Weight: 305g ± 10g (380mm * 110mm, Painted)
Stem angle: -6°
Handlebar drop: 128mm
Handlebar reach: 80mm
Stem height: 35.5mm
Handlebar width (handle shift position CC) (mm): 360mm/380mm/400mm
Bar width (CC) (mm): 390mm/410mm/430mm
Stem length: 90mm/100mm/110mm/120mm/130mm/140mm
Drop handle spread: 6.6°
Handlebar sweep angle: 6°
Steerer tube diameter: 1-1/8″ (28.6mm)
Finish: Carbon grey matte

The KREUZA handlebar is made from T800 carbon fiber, and the 290cm version with a 305mm stem, weighs just 38 grams (110 grams after painting).

Available in 18 sizes with widths ranging from 360 mm to 400 mm and stem lengths from 90 mm to 140 mm.

Weight: 305g±10g (380mm*110mm, Painted)
Stem angle: -6°
Handlebar sinking: 128mm
Handlebar reach: 80mm
Stem height: 35.5mm
Handlebar width (Hand change position CC) (mm): 360mm/380mm/400mm
Bottom Width(CC)(mm)：390mm/410mm/430mm
Stem length: 90mm/100mm/110mm/120mm/130mm/140mm
The lower position is expanded：6.6°
Curved handlebar sweep angle: 6°
Steer diameter: 1-1/8″((28.6mm)
Carbon ash matting
