Weight: 1770 grams (Pair 29")
Weight: 820 grams (Front 29")
Weight: 950 grams (Rear 29")
~BOOST
~BOOST INTL
~BOOST XD
KEY BENEFITS
Light and durable
Welded rim construction for: a light and strong rim profile and aa perfectly sealed rim
Dynamic and agile
24 double butted spokes Infinity hub platform ID360 double ratchet freewheel system
Tubeless ready technology
A tubeless rim profile and tubeless tape make it easy to ride tubeless tires for more comfort and control

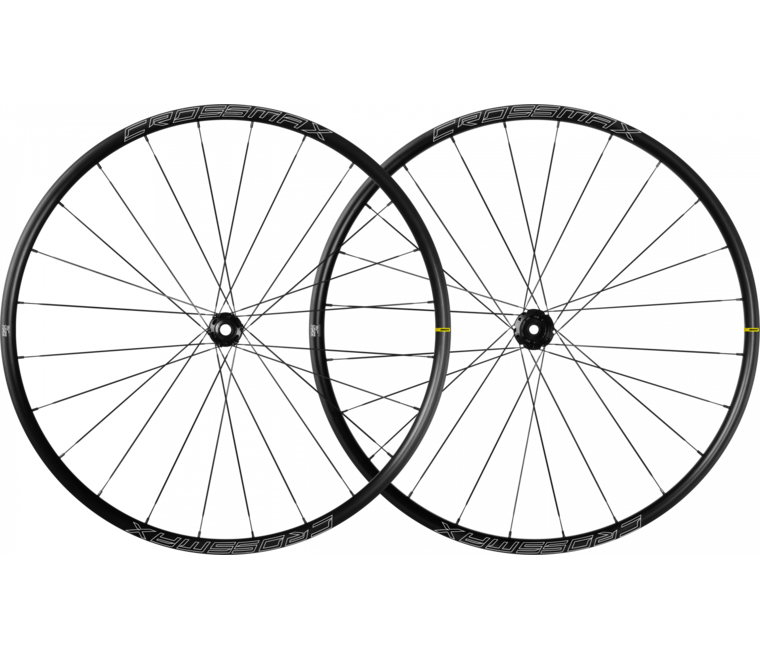

The name Crossmax has a long history in the world of XC riding and racing and this new wheelset lives up to its name with many of the same features and technologies as pro-level XC race wheels, but at a far more attainable price. One of the key factors is our UST technology, which allows for easy setup of tubeless ready tires and gives you all the associated benefits including better traction and control, a smoother ride quality and a reduced risk of punctures. The rim is welded for added reliability and features a 25mm internal width with a hookless profile.
The Infinity lighter hub design optimizes lateral stiffness and spokes tension. Our Instant Drive 360 freewheel with a double ratchet system provides fast engagement and top-level reliability. The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The Crossmax is available with 6-bolt or center lock brake rotors in 29” and 27” and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes and accessories.
The Infinity lighter hub design optimizes lateral stiffness and spokes tension. Our Instant Drive 360 freewheel with a double ratchet system provides fast engagement and top-level reliability. The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The Crossmax is available with 6-bolt or center lock brake rotors in 29” and 27” and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes and accessories.
SPECIFICATIONS
Rims
- Material: Maxtal
- Drilling: traditional
- Valve hole diameter: 6.5mm
- Internal width: 25mm
- ETRTO size 29": 622x25TSS
- Use with Mavic Tubeless Tape
- Asymmetrical rim design
- UST Tubeless Ready
- SUP
Spokes
- Material: steel
- Shape: straight pull, flat, double butted
- Nipples: steel, ABS
- Count: 24 front and rear
- Lacing: front and rear crossed 2
Hubs
- Axles: Front 15X110 (Boost) or 15x100; Rear 12X148 (Boost) or 12x142
- Hub available with 6-bolt or center lock (R) brake rotors
- Infinity Hub
- Instant Drive 360
- QRM Auto
Versions
- Disc standard: 6 Bolts or Center Lock (R)
- Hub width: Boost (front 110, rear 148) or Non-Boost (front 100, rear 135/142)
- Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline
Compatibility
- Front axle: convertible from 15mm thru axle to Quick Release with adapters (delivered with non-boost wheel)
- Rear axle: 12mm thru axle, convertible to Quick Release with adapters (delivered with non-boost wheel)
Compatible Adapters and freewheel bodies
- Non-Boost : 15 to 9mm front adapter for quick release ([L99694100] - Delivered with the wheel)
- Boost: Torque Caps (LV2374400)
- 12x142 rear axle adapters ([LV2510700] - Delivered with the wheel)
- Non-Boost : 12 to 9mm rear adapter for quick release ([LV2510800] - Delivered with the wheel)
- Non-Boost: 12x135 rear axle adapters ( LV2510900 )
Intended use
- ASTM CATEGORY 3: CROSS COUNTRY
- For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 150kg, bike included
- Recommended tire sizes: 50mm to 76mm (2.0" to 3.0")
Delivered with
- UST valves and accessories
- Pre-installed tubeless rim tape
- 2 replacement spokes with each wheel
